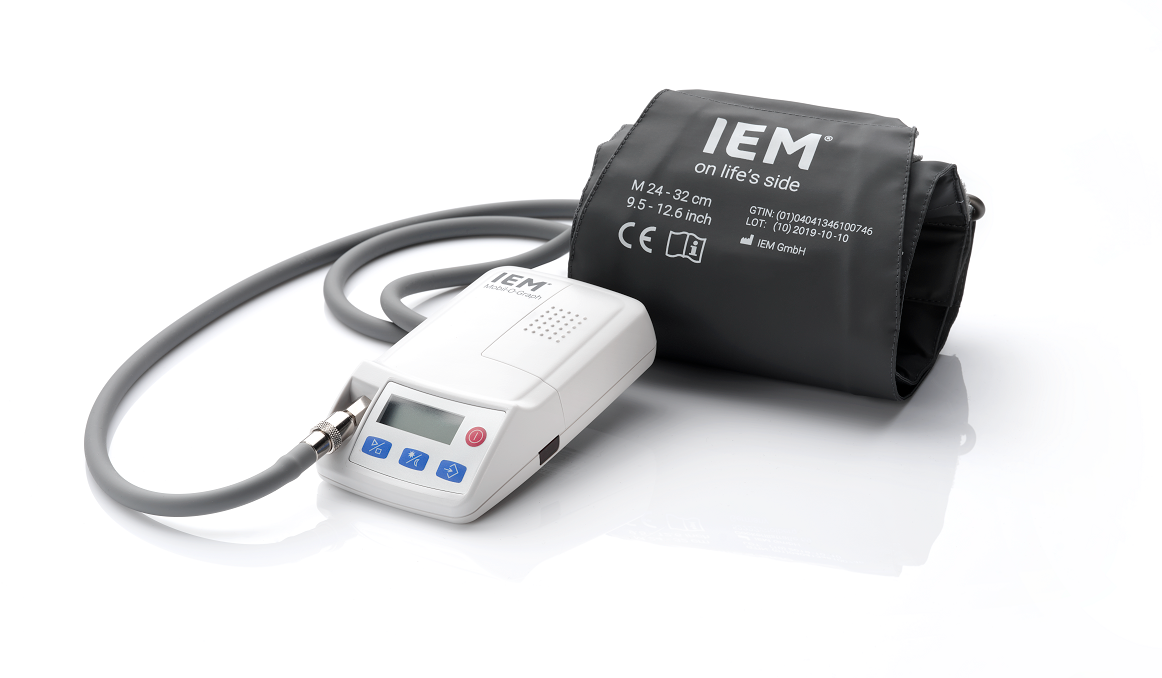

The Mobil-O-Graph® is a highly regarded medical device for 24-hour ambulatory blood pressure monitoring (ABPM) and pulse wave analysis, used in clinics and research settings. It is not a mobile photography app, but rather a professional diagnostic tool produced by IEM GmbH.
Manufacturer: IEM GmbH
Addresses:
- IEM GmbH
- Gewerbepark Brand 42
- 52078 Aachen
- Germany
- Phone: +49 241 41259-300
- Fax: +49 241 41259-311
Core Functionality & Features
- Ambulatory Blood Pressure Monitoring (ABPM): The primary function is to record blood pressure at regular intervals over a 24- to 48-hour period during a patient’s daily routine, including sleep. This helps provide a more accurate blood pressure profile by mitigating the effects of “white coat hypertension” (elevated BP due to clinical anxiety).
- Pulse Wave Analysis (PWA) & Central Blood Pressure (cBP): The device offers optional modular upgrades to measure central blood pressure and perform pulse wave analysis. These features provide additional hemodynamic parameters to assess arterial stiffness and cardiovascular risk.
- Accuracy: The technology is clinically validated, having achieved an A/A grade from the British Hypertension Society (BHS) for accuracy. The Auto-Feedback-Logic (AFL) ensures comfortable and gentle cuff inflation, which improves patient compliance.
- Software Integration: The Mobil-O-Graph® integrates with Hypertension Management Software (HMS CS) for data evaluation and analysis. Optional intelligent integration software (i3) allows seamless data transfer to clinical systems like NHS clinical systems (EMIS, TPP, Vision), reducing manual data entry and potential errors.
- Design: It is designed to be compact, lightweight, and quiet to ensure discreet and comfortable use for the patient.
Product Prices
- Mobil-O-Graph 24hrs blood pressure monitor (Basic Set): From approximately €1,299.00 (excl. VAT).
- IEM Mobil-O-Graph 24 Hour ABPM: Available from around €1,195.00 (excl. VAT).
- Mobil-O-Graph 24hrs blood pressure monitor (Premium Set): Available from around €1,699.00 (excl. VAT).
- VectraCor Mobil-O-Graph ABPM Premium Set with S, M, and L Cuffs: Priced at around $2,400.00.
- Mobil-O-Graph 24 Hour Pulse Wave Analysis System: From approximately €2,499.00 (excl. VAT)
Rental & Accessories
- Monthly Rental: IEM GmbH offers a complete premium set for rental at €59.00 per month plus VAT.
- Additional Recorder: An additional Mobil-O-Graph recorder unit can be purchased for approximately €1,099.00 (net).
- Cuffs: Mobil-O-Graph cuffs in various sizes (S, M, L, XL) are available, with prices starting at around €27.50 plus VAT directly from IEM, or about £64.50 to £96.97 (excl. VAT) from other suppliers.
- PWA License: A license for Pulse Wave Analysis (PWA) can be added for €823.00 (excl. VAT).
Free References
IEM Mobile-O-Graph Operating Instructions
Validation of the mobil-O-Graph: 24 h-blood pressure measurement device
Pulse wave analysis using the Mobil-O-Graph, Arteriograph and Complior device: a comparative study
Unreliable Estimation of Aortic Pulse Wave Velocity Provided by the Mobil‐O‐Graph Algorithm‐Based System in Marfan Syndrome
Correlation between short-term blood pressure variability parameters with mobil-O-graph pulse wave velocity
Comparision of photo pulse plethysmography module with Mobil-O-graph for measurement of pulse wave velocity
Measurement of central augmentation index by three different methods and techniques: Agreement among Arteriograph, Complior, and Mobil-O-Graph devices
P57: assessment of Pulse Wave Velocity and association to Target Organ Damage in Treatment-Naïve Hypertensive Patients: A Comparison of Sphygmocor and Mobil-O-Graph
Estimation of Cardiac Index: Validation of the Mobil-O-Graph NG in Comparison with the FloTrac/Vigileo
Personalised hypertension management with accurate blood pressure measurement: much achieved, much more to do
